SIDE-BY-SIDE
HIGH PERFORMANCE TOURING GLIDER
OUR GOAL
is to create a unique glider that offers maximum flight performance, safety, comfort and, above all, autarky.
OUR VISION
is to make unique gliding experiences possible for many flying enthusiasts with our TIME-SHARING model.
MAXIMUM GLIDING PERFORMANCE
- benchmark: better than all 20 m two-seaters
- aerodynamics: Prof. L. Boermans and Prof. J. Bosman (JS)
- wingspan 23 m – multiple trapezoid wings
- wing characteristics in proven JS quality
- integrated bug wipers
- optimized wing-fuselage transition with High Performance Flap (HPF) for reduced sink rate
MAXIMUM SAFETY
- overall rescue system
- state-of-the-art crash cockpit
- integrated oxygen system
- large rear-view mirror
MAXIMUM GLIDING PERFORMANCE
- benchmark: better than all 20 m two-seaters
- Aerodynamik: Prof. L. Boermans und Prof. J. Bosman (JS)
- wingspan 23 m – multiple trapezoid wings
- wing characteristics in proven JS quality
- integrated bug wipers
- optimized wing-fuselage transition with High Performance Flap (HPF) for reduced sink rate
MAXIMUM SAFETY
- overall rescue system
- state-of-the-art crash cockpit
- integrated oxygen system
- large rear-view mirror
MAXIMUM COMFORT
- air-conditioned cockpit – heating & cooling
- two large luggage compartments for trolleys
- additional storage accessible in flight
- laterally sliding instrument panel for better entry and exit
- electric operation of canopy
- electric operation of landing gear
- electric seat and pedal adjustment
- cockpit for pilots from 1.65 m to 2.05 m
- low cockpit entry height
MAXIMUM AUTONOMY
- e-hybrid drive with range > 1000 km
- independent taxiing on ground
- twin gear – track width 1.45 m
- steerable and freely rotatable tail wheel; no tail dolly required
- charging via integrated charger or range extender
- one-man rigging of outer wings

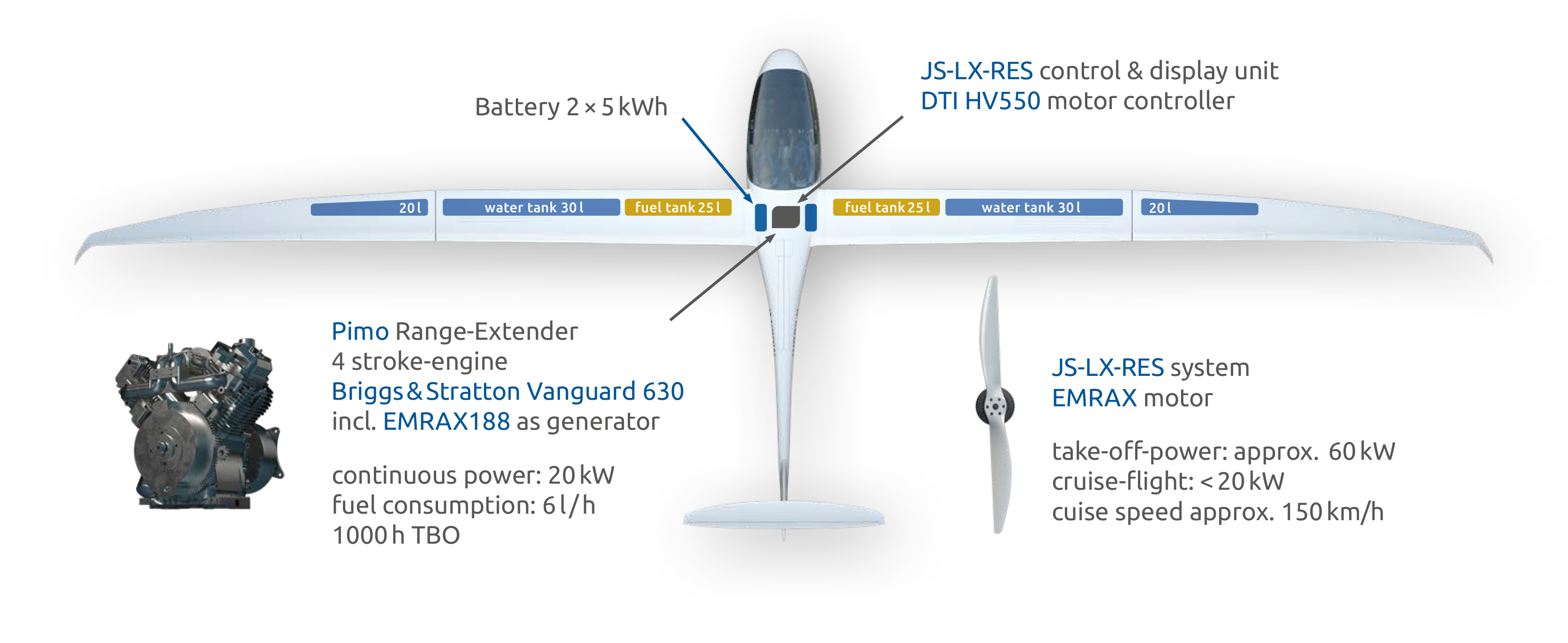

E-HYBRID-DRIVE
Technical data
- wingspan 23 m
- glide ratio > 1:55
- persons 2
- MTOW 900 kg
- wing area 18,75 m2
- wing load < 48 kg/m2
- max. payload 220 kg (passengers + luggage)
- fuel tank capacity 50 l
- battery capacity 10kWh
- max. prop power 60 kW peak power
- range extender 20 kW continues power output
- fuel consumption approx. 6 l/h
- range by engine > 1.000 km
weight overview
- empty weight 450 kg
- payload 220 kg (passengers + luggage)
- JS-LX-RES-System 35 kg
- rescue system 30 kg
- overall range extender 50 kg
- battery 50 kg
- fuel tank max. 40 kg
- water tank max. 60 kg (outer wing)
- reserve > 25 kg
- total weight max. 900 kg
E-VOLUTION – powered by
INTENDED PROJECT PARTNERS
- concept & development: E-VOL-UTION GmbH,
Manfred Dick & Markus Uhlig - aerodynamics: Prof. Loek Boermanns & Prof. Johan Bosman (JS)
- consulting: Werner Scholz, SFL GmbH, Stuttgart
- design: Hendrik Weber, WDA
- hybrid powertrain development: E-VOL-UTION GmbH in cooperation with JS, LX NAV and Pimo GmbH
- airframe development and prototype construction: JS / OnTrack Technologies, Potchefstroom
- manufacturer: JSDG Production Organisation GmbH
- Design Organisation: DG Aviation GmbH, Bruchsal
- After Sale Service: DG Aviation GmbH, Bruchsal
TIME-SHARING MODEL – the alternative to own a glider
For many gliding enthusiasts, the high costs of modern high-performance gliders are hardly affordable. The annual maintenance needs additional time and financial resources. Many people have less time to use their own aircraft intensively.
Starting at € 60,000, the E-VOLUTION time-sharing model offers unique opportunities to use top aircraft at different locations at low cost.
Time-Sharing partners become silent partners in an E-VOLUTION holding company for 24 months. At the end of the contract period, the TIME SHARING partners receive their capital back.
Time Sharing Partners receive flight- time for their capital. With standard market charter fees, the “interest rate” is more than 8.0 % p.a.
An Arcus M and a RISEN will be available in 2025, and a JS 5 from 2026.
Three E-VOLUTION are planned for 2028. The locations will be Germany & South France in summer and South Africa, Namibia & New Zealand in winter.
E-VOLUTION GmbH organizes the time-sharing system and covers the annual maintenance costs. The time-sharing partners do not pay any maintenance costs.
Questions – Feedback – Reservations
For all other questions, please send us an e-mail to info@e-vol-ution.de
